Group-Buy Date: June 8th to July 10th

Estimated Shipping Date: End Q1 2027 - Q2 2027

Spare-Parts are available here.

Ophanim Keyboard specifications:

• Materials: 6063 Aluminum, Brass, Stainless Steel
• Layout: WKL 65%
• Typing Angle: 7 Degrees
• EKH: 22.3mm
• Weight: 1.2kg unbuilt
• Mounting: Dampened Top or PCB Gasket

PCB specifications:

• Material: Black FR4
• Thickness: 1.6mm
• Connectivity: Onboard USB-C
• Customizability: VIA
• Type: Solderable and Hotswap

Layout:

Solder & Hotswap

Mounting Design:

PCB Gasket Mount - It can be built with or without the plate and uses molded gaskets to isolate the PCB from the top and bottom case.

Dampened Top Mount - Two plate designs to accommodate softer materials. Gaskets can be removed when using a plate with PCB gasket mounting to prevent rattle between plate and top case.

Colorways:

	Top Case	Bottom Case	Weight

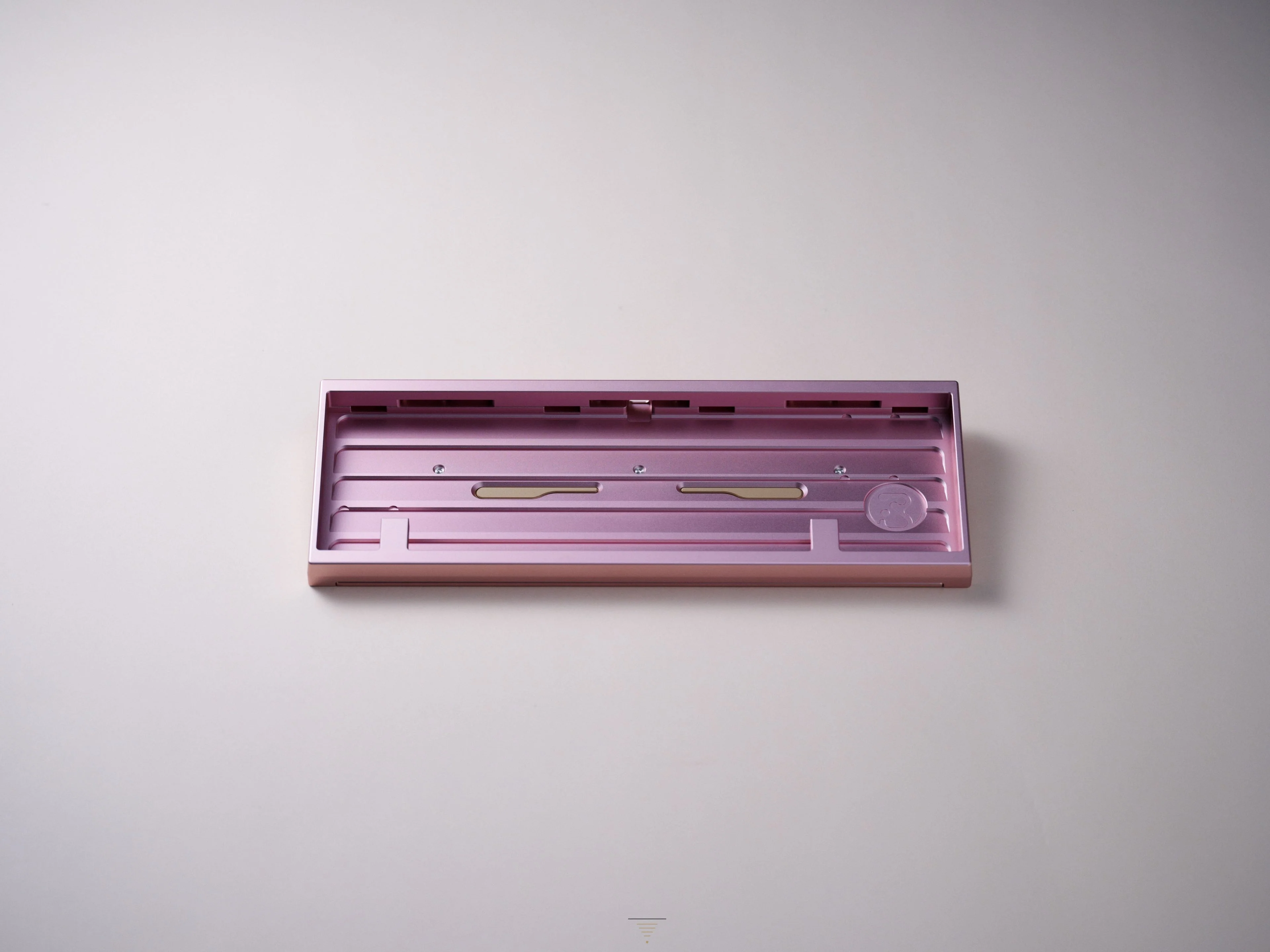

Flesh	Light Pink Anodized	Light Pink Anodized	Sandblasted and Clear Coated Brass
Angel	Sparkle White Coating	Sparkle White Coating	Sandblasted and Clear Coated Brass
Ancient	Purple Anodized	Burnt Orange Anodized	Sandblasted and Clear Coated Brass
Firmamento	Sparkle Black Coating	Sparkle Black Coating	Sandblasted and Clear Coated Brass
Unnatural	Green Anodized	Silver Anodized	Sandblasted and Clear Coated Brass
Archangel	Silver Anodized	Silver Anodized	Sandblasted and Clear Coated Brass
Delusion	Raw + Clear Anodize	Raw + Clear Anodize	Raw Brass
Ferrofluid	Silver Anodized	Blue Anodized	Sandblasted Stainless Steel
Pandemonium	Smokey Acrylic	Red Anodized	Sandblasted Stainless Steel
